Axis 50S Spiral Bending Machine

Spiral Bending Up to Ø50 mm

Spiral and Circle Forms

Open-Close Conveyor System

Quiet and Powerful Motor

Flat Steel Bending Support

Axis 50S Technical Data

Axis 50S SPECIFICATIONS

Bending Motor

5.5 KW

Roller Motor

3 KW

Roller Motor

3KW

Supporting Roller Motor

1.5KW

Machine Dimensions Supporting Bending Conveyor - Closed

92 x 160 x 160 cm

Machine Dimensions   supporting Bending Conveyor - Open

163 x 280 x 160 cm

Weight

1140 kg

CAPACITY

Diameter

(45kg/mm²)

Ø 50

1

Ø 40

1

Ø 32

1

Ø 26

2

Ø 20

3

80 x 20 (quadrangle)

1

100 x 10 (quadrangle)

1

60 x 15 (quadrangle)

1

Axis 50S Spiral Rebar Bending Machine

Maximum Power and Control in Spiral Rebar

Spiral Bending Ability Up to 50 mm Diameter

It offers spiral bending capacity up to Ø50 mm diameter in high-strength steels.
Bends of flat steel (100x10, 80x20, 60x15) are also possible.

Powerful Engines, Effective Performance

With 5.5 kW bending motor, 3 kW x2 drum motor and 1.5 kW support cylinder motor, it provides superior performance in heavy duty work.

Table with Adjustable Backing

With its supported conveyor system that can be opened and closed, it offers a large working area and the possibility of balanced spiral bending.

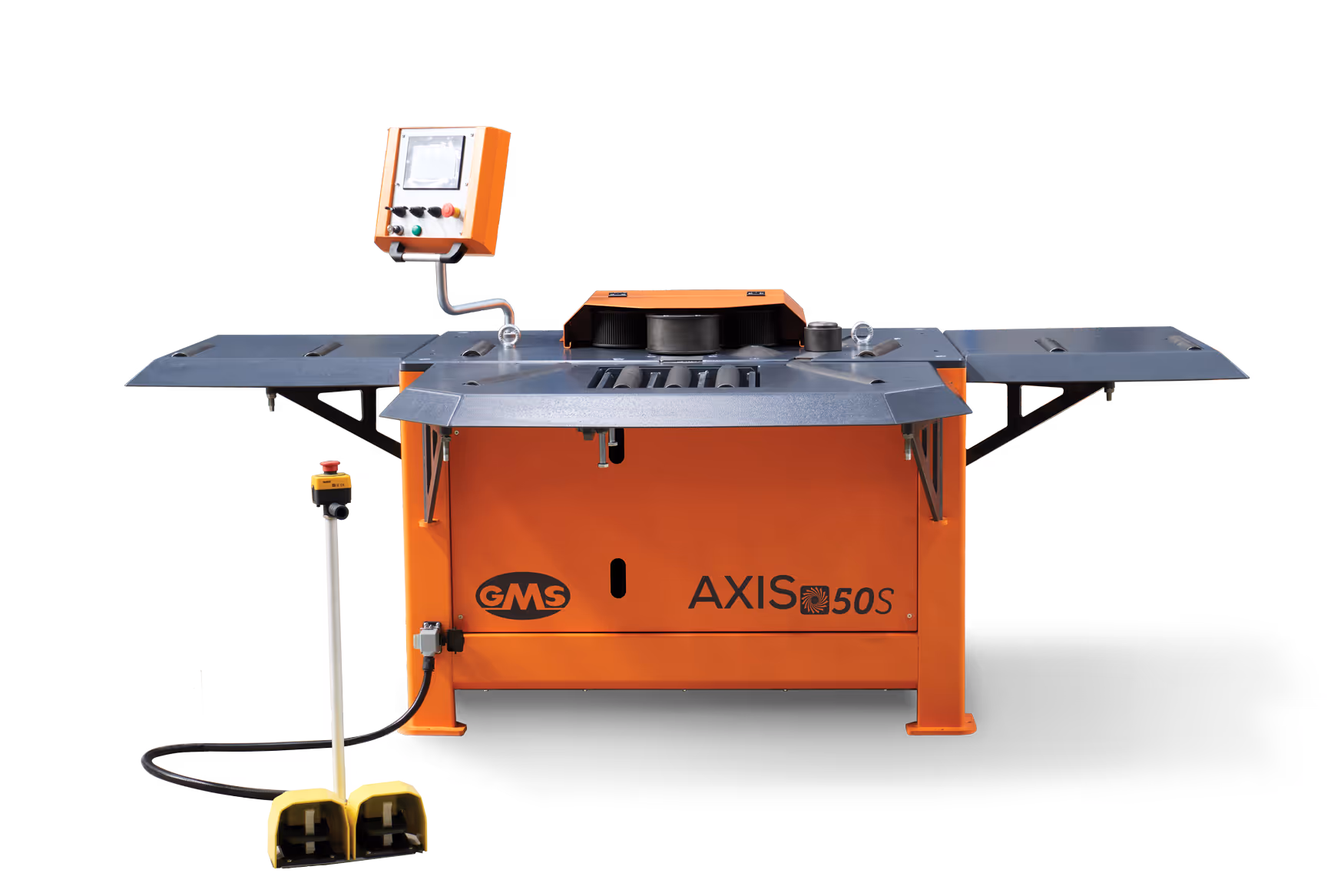

yüksek büküm gücüne sahip Axis 50S modelinin yandan görüntüsü

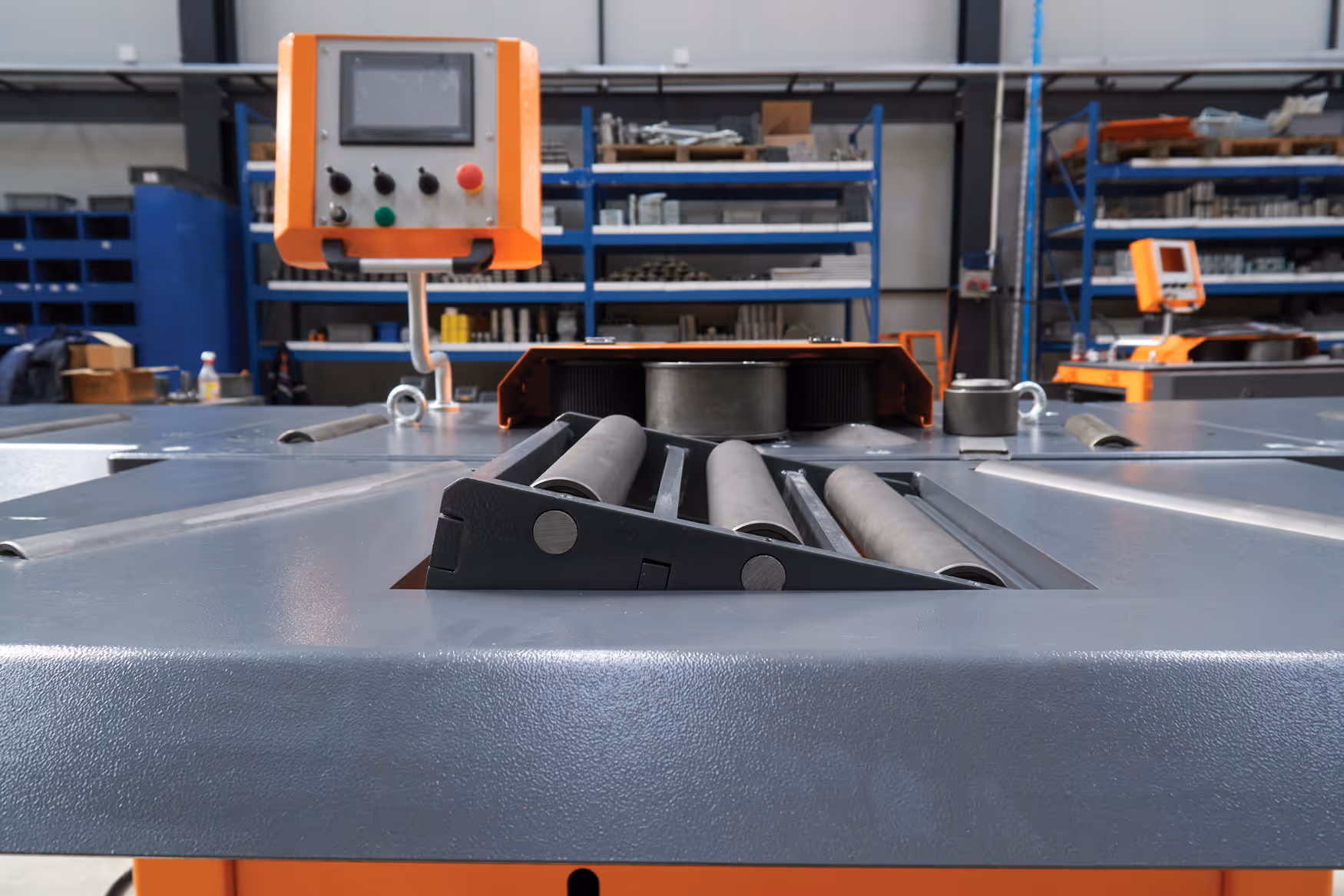

Göçmaksan markasının ürettiği axis 50s markalı spiral demir bükme makinasının açılır kapanır kanatlarının kapalı haline karşıdan görünüşü
XIS 50S spiral demir bükme makinası, göçmaksan tarafından geliştirilen, büyü şantiyeler için tasarlanan makina.

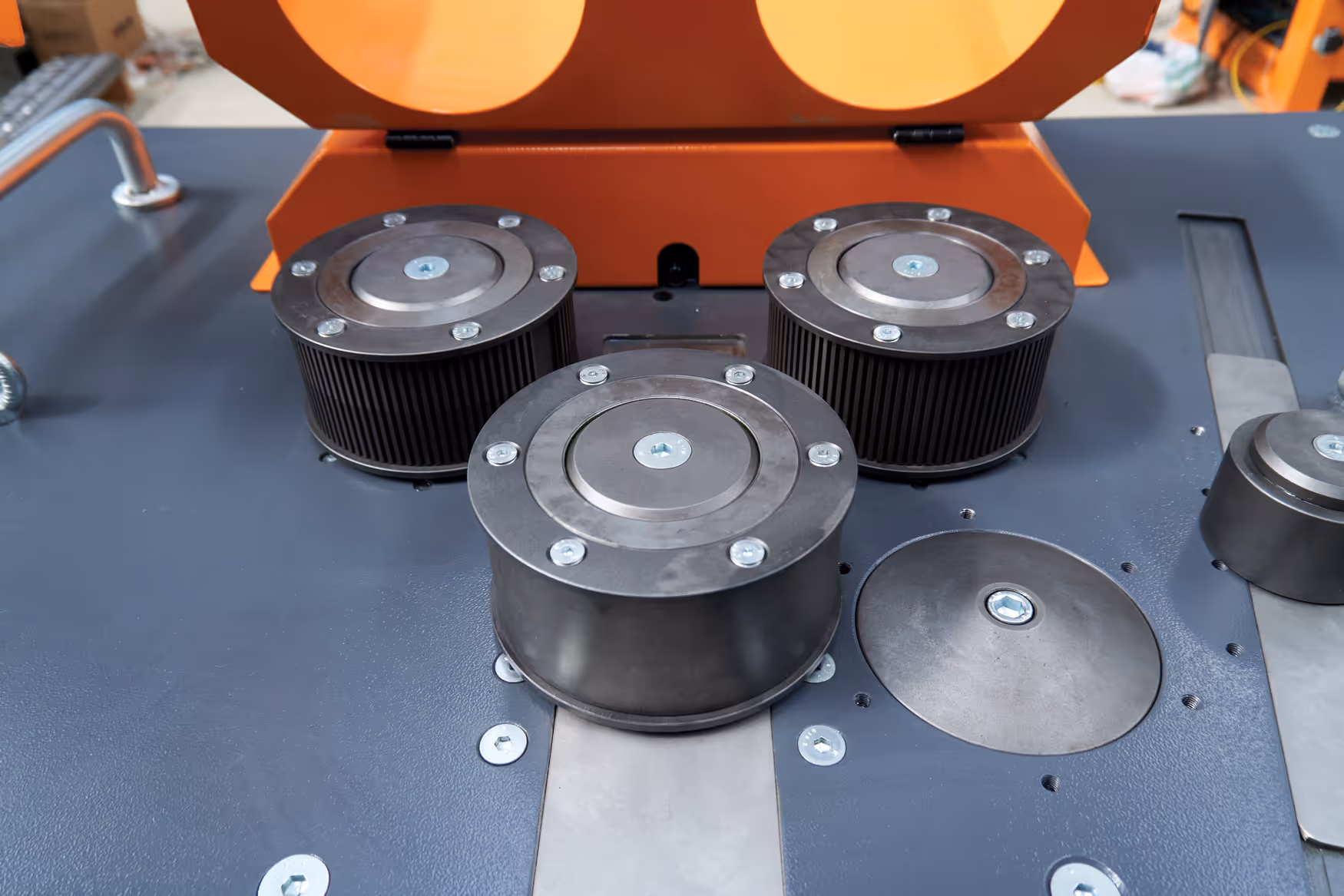

Göçmaksan tarafından geliştirilen Axis 50 s modelinin büküm aparatları.

Modular and Portable Design

Comfortable work in the field with dimensions of 163x280x160 cm (open); when closed, it saves space.

High Efficiency & Durability

It has a solid structure with a weight of 1140 kg. It has a long service life with a low maintenance requirement.

Developed with half a century of engineering experience, AXIS 50S offers maximum precision and durability in spiral iron bending operations in bridge, tunnel and infrastructure projects.

GMS spiral demir bükme makineleri, dairesel ve halka biçimli büküm uygulamaları için ideal çözümler sunar.

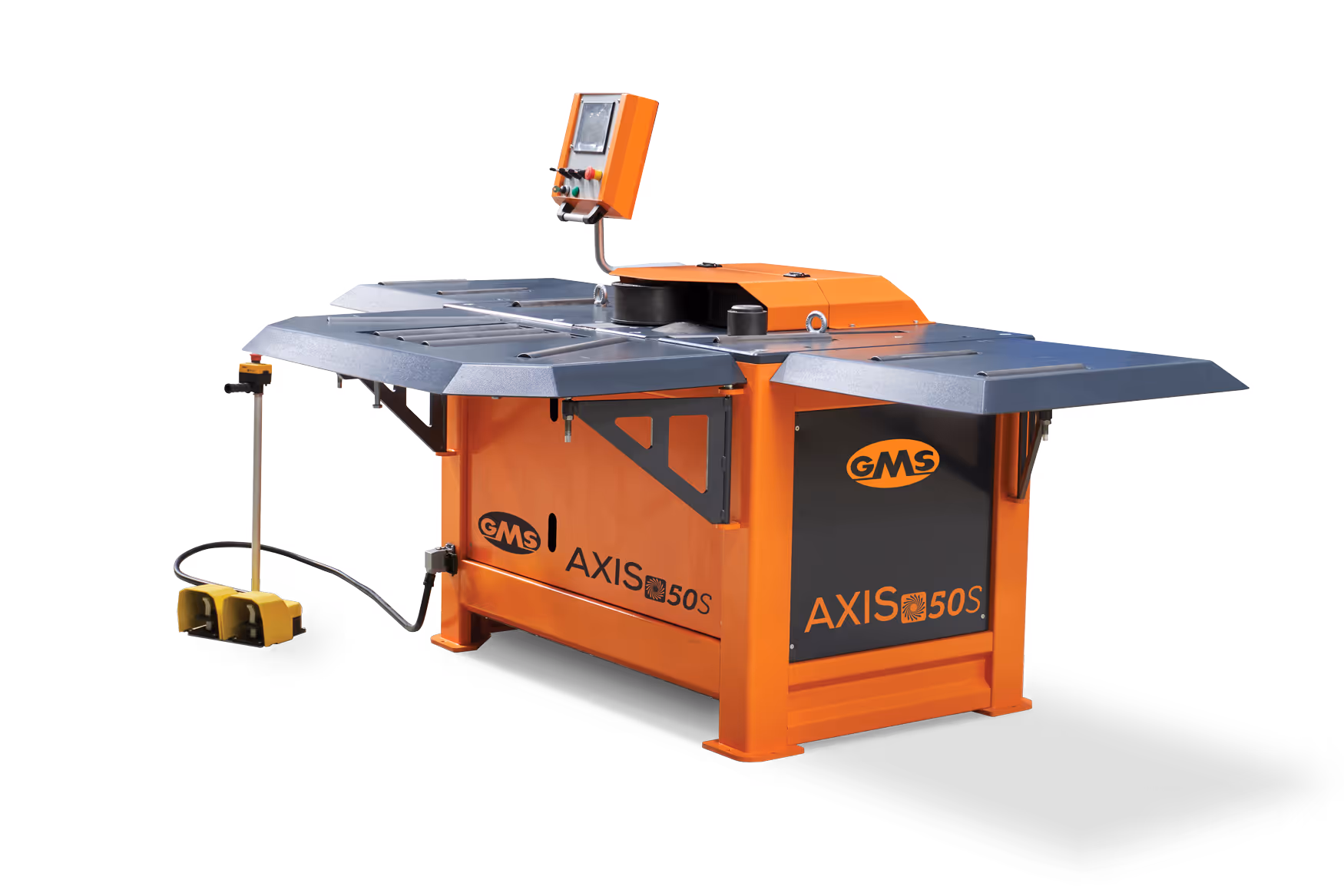

GMS AXIS 50S spiral bükme makinasının yandan görünümü, sağlam gövde ve gelişmiş kontrol sistemiyle.
