Bend to the right and left
Mechanical and electrical
automation
Bend at any desired angle
Planetary reducer
Save 9 different twists
Digital display option
72 ⁄ 77 ⁄ 87
W - L - H cm
380
voltage IN
2,2
Engine Power kw
175
Weight kgs
45 kg/mm2
Rebar Diameter (Ø) x Piece
65 kg/mm2
Rebar Diameter (Ø) x Piece
85 kg/mm2
Rebar Diameter (Ø) x Piece
Ø 26 x 1
Ø 22 x 2
Ø 20 x 1
Ø 16 x 2
Ø 14 x 3
Ø 12 x 5
Digital Display Option
BD Series
78 ⁄ 87 ⁄ 89
W - L - H cm
380
Voltage IN
3
Engine Power kw
285
Weight kgs
45 kg/mm2
Rebar Diameter (Ø) x Piece
65 kg/mm2
Rebar Diameter (Ø) x Piece
85 kg/mm2
Rebar Diameter (Ø) x Piece
Ø 36 x 1
Ø 32 x 1
Ø 28 x 1
Ø 22 x 2
Ø 20 x 2
Ø 16 x 2
Digital Display Option
BD Series
83 ⁄ 111 ⁄ 89
W - L - H cm
380
voltage IN
4
Engine Power kw
390
Weight kgs
45 kg/mm2
Rebar Diameter (Ø) x Piece
65 kg/mm2
Rebar Diameter (Ø) x Piece
85 kg/mm2
Rebar Diameter (Ø) x Piece
Ø 45 x 1
Ø 40 x 1
Ø 32 x 1
Ø 30 x 2
Ø 26 x 2
Ø 20 x 2
Digital Display Option
BD Series
86 ⁄ 119 ⁄ 89
W - L - H cm
380
Voltage IN
5,5
Engine Power kw
457
Weight kgs
45 kg/mm2
Rebar Diameter (Ø) x Piece
65 kg/mm2
Rebar Diameter (Ø) x Piece
85 kg/mm2
Rebar Diameter (Ø) x Piece
Ø 50 x 1
Ø 45 x 1
Ø 36 x 1
Ø 32 x 2
Ø 30 x 2
Ø 28 x 2
Dijital Ekran Opsiyonu
BD Serisi

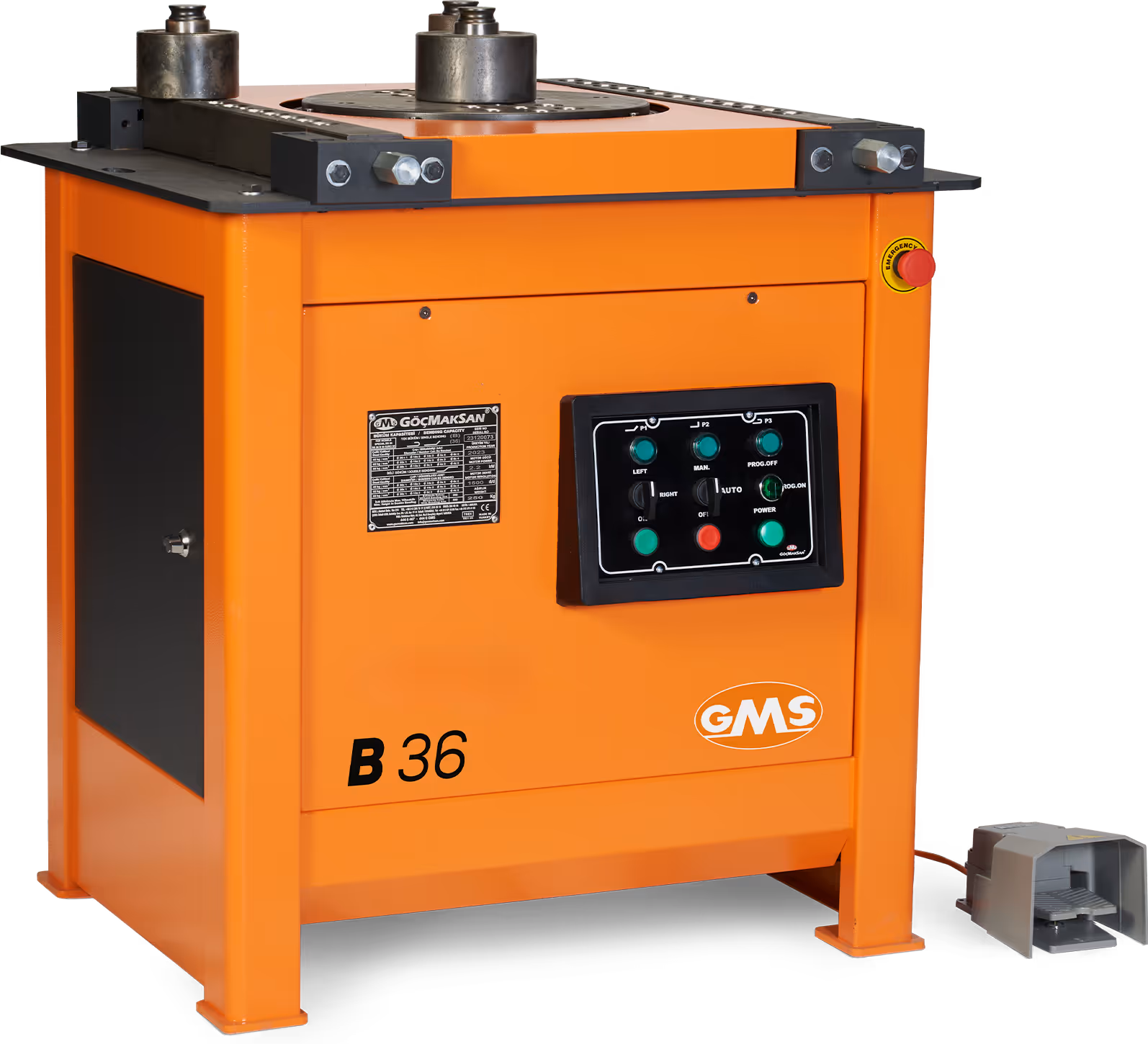

Manufactured with half a century of experience from GMS, rebar bending machines offer maximum efficiency and durability on construction sites. It adds strength to any project with precise bending technology.
Equipped with both clockwise and counterclockwise rotation functions, along with a range of interchangeable bending tools, it is ideal for standard bends, as well as stirrup and spiral bending applications.
Steel components manufactured by CNC technology and heat treatment application offer maximum durability and long service life.
Thanks to the mechanical and electrical automation system, precise and fast bends are now much easier.
The pin, miter and hook twists, which are most commonly used with spindle pins, are adjusted flawlessly.
With electrostatic powder coating, it provides complete protection against rust and external influences.
Quick stop system with emergency stop, foot pedal and button ensures complete control and safe working environment.
Developed with GMS engineering, electronic control cards offer fast service support and cost-effective spare parts.
